High End Mercedes Benz CarPlay & Android Auto Interface

Model No: P2000-NTG45MM

Brief introduction

(Unlike other products that use “AUX in” as an audio source which downgrades the audio quality)
Mr12volt uses the MOST optical system and utilises “TV” video input, therefore providing a high end digital to digital sound quality. If you have a Harmon Kardon or high sound system, Mr12volt is your choice!!

No hassel to look for Coding !!
Mr12volt Module comes with a Built-In TV enabling function with NO third party coding tools required

And how do i activate TV function with Mr12volt??
After installing Mr12volt, simply press  “C” + Return” buttons together for 5 secs, TV Menu will appear immediately

Compatible with Mercedes-Benz NTG 4.5 / 4.7 2012-2015

• W212 A207 C207  E-class
• W204  C
• W176  A
• W246  B
• C218  CLS
• W166  ML
• X166  GL
• W463  G
• R172  SLK
• R231  SL
• C197/R197  SLS

IMPORTANT

NTG 4.5 / 4.7 that do not have SD slot is not supported

Highlight Features:

• OEM microphone supported
• Runs on MOST BUS with High-End sound quality
• Supports OEM Reverse Camera
• Possible to add Aftermarket Front/Reverse/Blind spot Cameras
• Wireless & Wired Apple CarPlay, Google Android Auto
• Wireless MirrorLink
• Bluetooth Hands free & Audio Streaming
• USB Video & Music Playback
• Supports Apple Lossless music streaming
• Highly Customisable 15 bar DSP Equalizer

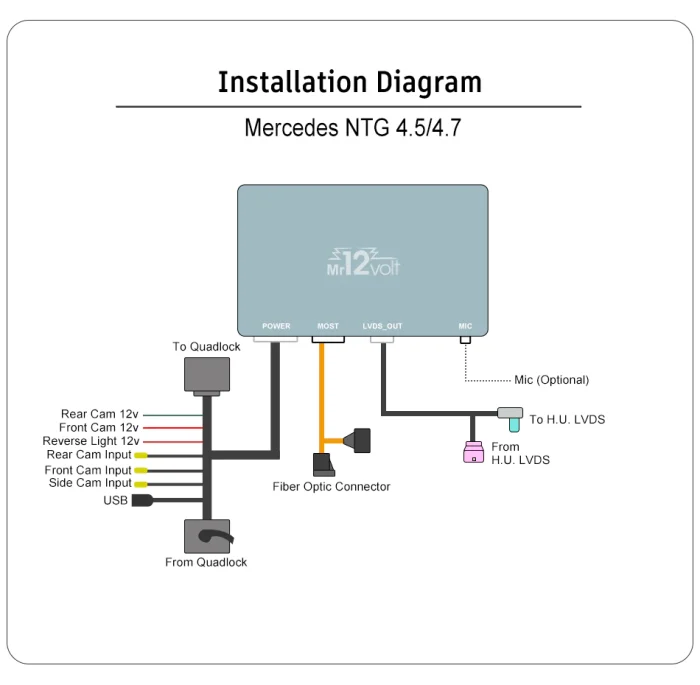

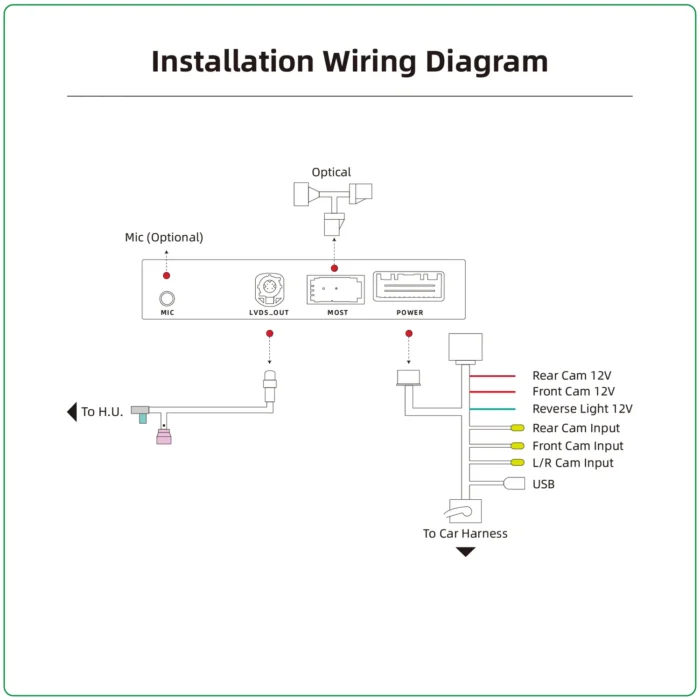

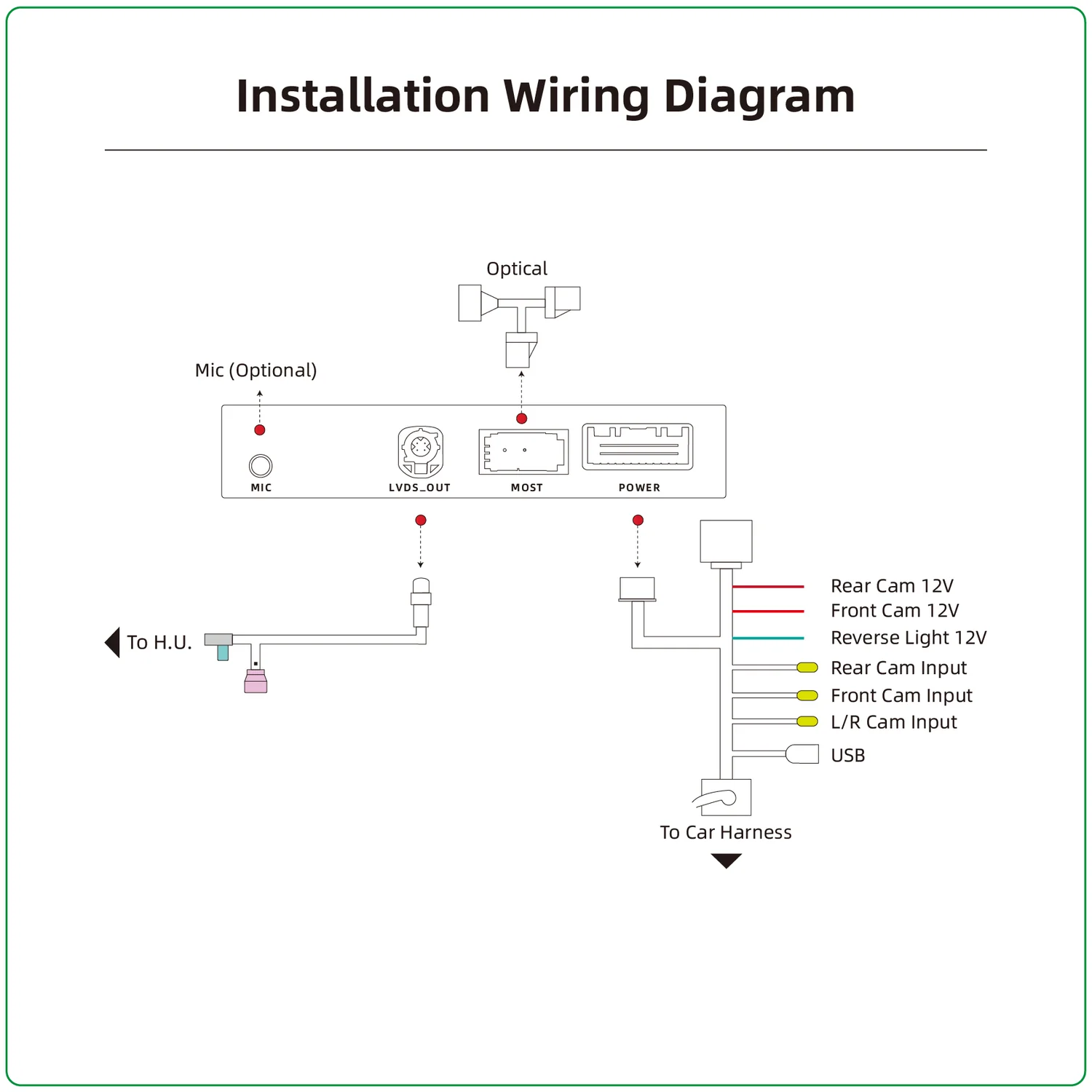

How it works

• Mr12volt is selected through TV features of Mercedes NTG 4.5 / 4.7
• No coding tools or Factory TV module is needed, once Mr12volt CarPlay module is installed successfully (pressing both “Return” and “C” buttons will activate the “TV” option in menu)
• Supports aftermarket cameras up to AHD720
• Supports the integration of OEM microphone
• Both MB and Mr12volt Bluetooth can be connected at the same time. MB will handle as HF/call and Mr12volt as HF/Media (as a result, MB HF takes over Mr12volt when a call is received)

P2000 supported multimedia type

High performance video and audio codec

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720×576
• JPEG codec (Baseline interleaved) 8176×8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Related Topics:

How to mirror to P2000 from phone

Technical Data:

• Operating Temperature: -20 – +80 degree centigrade
• DAC resolution: 18Bit
• MP3 kbit: 8 – 384kbit
• Voltage: 10 – 14.6V DC
• Operation Current: 450mA (700mA when charging mobile phone)
• S/N ratio: 95dB
• Total Harmonic Distortion: 0.1%
• Frequency Response: 20Hz – 20KHz

Installation Videos:

User Manual: NTG45MM
