Mr12Volt Range Rover Evoque L405 L494 L320 Wireless CarPlay Android Auto MOST Interface

Wireless Apple CarPlay & Android Auto for Range Rover & Land Rover

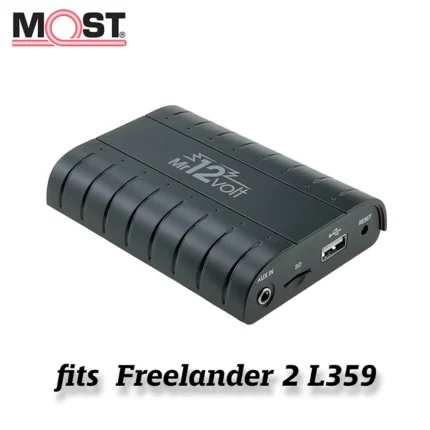

Model: P3000-JL12

Direct MOST Fiber Integration – No AUX

Designed for vehicles equipped with Land Rover MOST fiber optic audio systems, this interface integrates directly with the factory display, controls, and amplifier through the digital MOST network.

✔ Full factory sound quality

✔ Seamless OEM integration

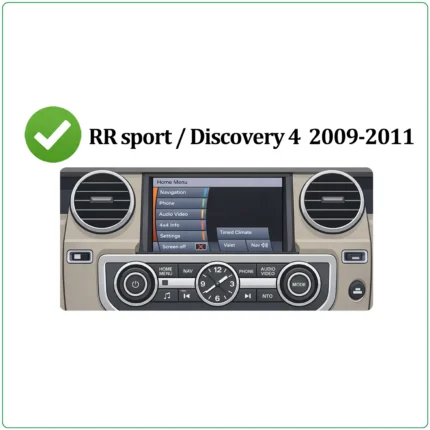

Compatible Vehicles

Compatible with Range Rover and Land Rover vehicles equipped with MOST fiber optic audio systems

• Range Rover Evoque (L538) — 2011–2015

• Range Rover Sport (L320) — 2012

• Range Rover Sport (L494) — 2013–2015

• Range Rover Vogue (L405) — 2013–2015

• Land Rover Discovery 4 / LR4 (L319) — 2012–2015

• Land Rover Freelander 2 (L359) — 2014–2015

⚠ Important Installation Notes

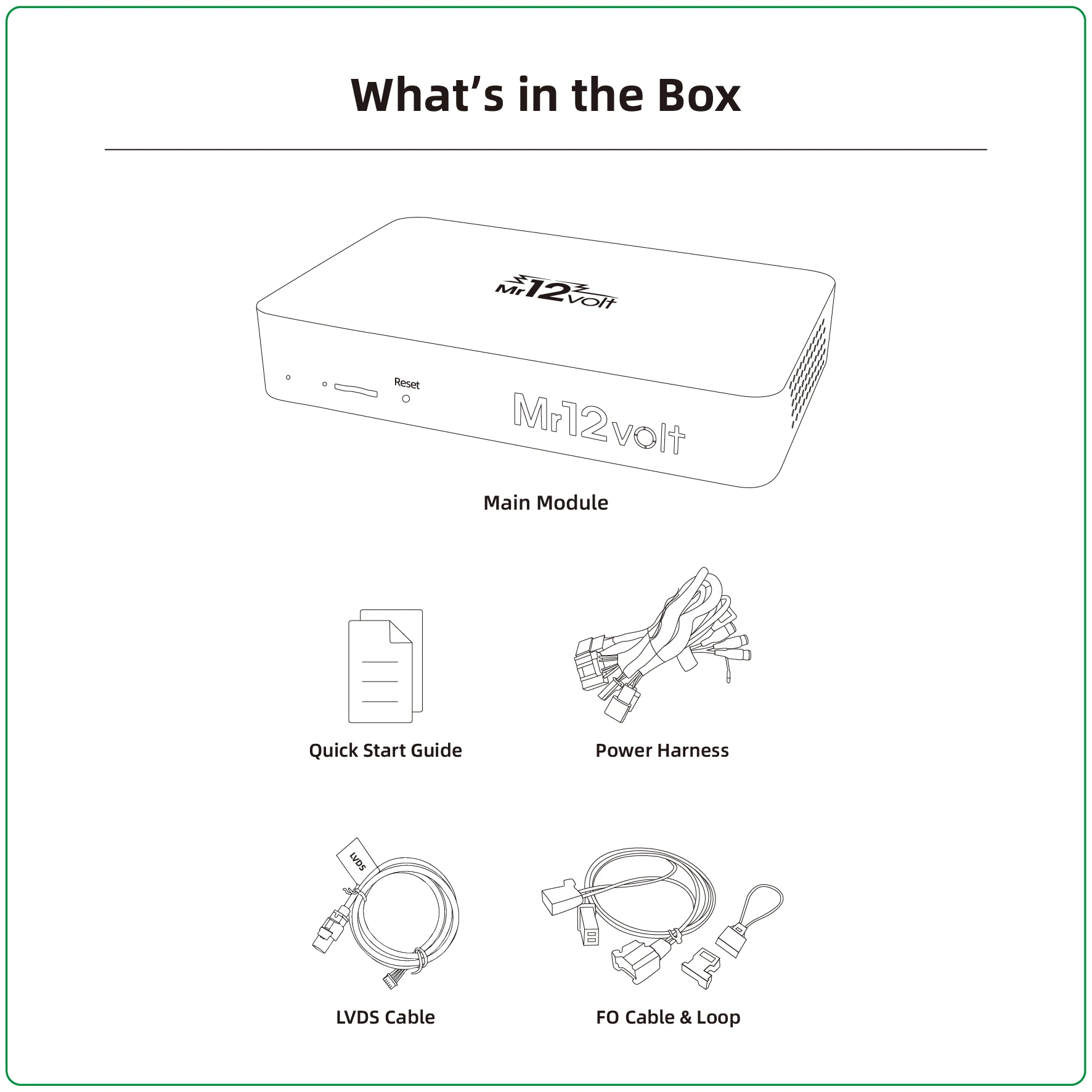

• If a factory TV module is present, it must be bypassed at the TV module itself using the supplied optical loop connector (included in the package)

• No coding required — MR12volt automatically activates the TV menu after installation, even if the vehicle does not have a factory TV module

• Professional installation recommended

Direct Digital MOST Integration

Unlike AUX-based CarPlay interfaces that rely on analog audio input, MR12volt integrates directly through the MOST fiber optic network, maintaining the integrity of the factory digital audio path.

AUX-based CarPlay systems

• Use analog signal transmission

• May reduce sound clarity

• Can introduce signal delay

MR12volt MOST integration

✔ No AUX required

✔ Direct digital audio transmission

✔ No analog conversion

✔ Preserves factory sound quality

✔ Compatible with Land Rover Base and Meridian sound systems

✔ Works with the factory amplifier

Designed to deliver true OEM-level audio performance.

Control Method

MR12volt is accessed through the factory TV menu.

• Select TV in the infotainment interface to launch the MR12volt system

• MR12volt simulates the factory TV module

• Once launched, Apple CarPlay and Android Auto are controlled through the factory touchscreen interface

Apple CarPlay & Android Auto Connectivity

• Wireless Apple CarPlay & Android Auto

• Wired Apple CarPlay & Android Auto

• Wireless MirrorLink (Android – CarLetter required)

Access navigation, Spotify, Apple Music, Waze, Google Maps, WhatsApp and hands-free calling directly on your factory display.

Camera & Multimedia Support

• Reverse camera input

• Front camera input

• Left / Right blind spot camera input

• Supports aftermarket cameras up to AHD 1080P

• USB video and music playback

OEM Feature Retention

MR12volt preserves the functionality of the original vehicle system, including:

• OEM microphone

• Factory parking sensor display

• Steering wheel controls

• Factory display integration

Switch seamlessly between the original vehicle interface and Apple CarPlay / Android Auto.

Advanced Audio Control

• 15-band DSP equalizer

• Independent navigation / media / microphone volume control

• Apple Lossless audio support

• Enhanced Bluetooth call clarity

• Bluetooth audio streaming

Optimized for Land Rover factory audio systems.

Frequently Asked Questions

Does this require AUX?

No. MR12volt integrates directly through the MOST fiber optic system.

Does it work with Meridian sound systems?

Yes. Fully compatible with Land Rover Meridian audio systems.

How do I access MR12volt in the vehicle system?

• Open the TV menu in the infotainment interface

• Select TV to launch the MR12volt system

Does it retain factory cameras?

Yes. Reverse camera and aftermarket camera inputs are supported.

Is this a full head unit replacement?

No. MR12volt is a retrofit interface that integrates with the original factory infotainment system while preserving the existing hardware.

What back camera is recommended for MR12volt?

MR12volt supports any aftermarket rear camera up to AHD 1080P resolution.

Firmware & Long-Term Support

• USB firmware upgrade supported

• Ongoing compatibility updates
