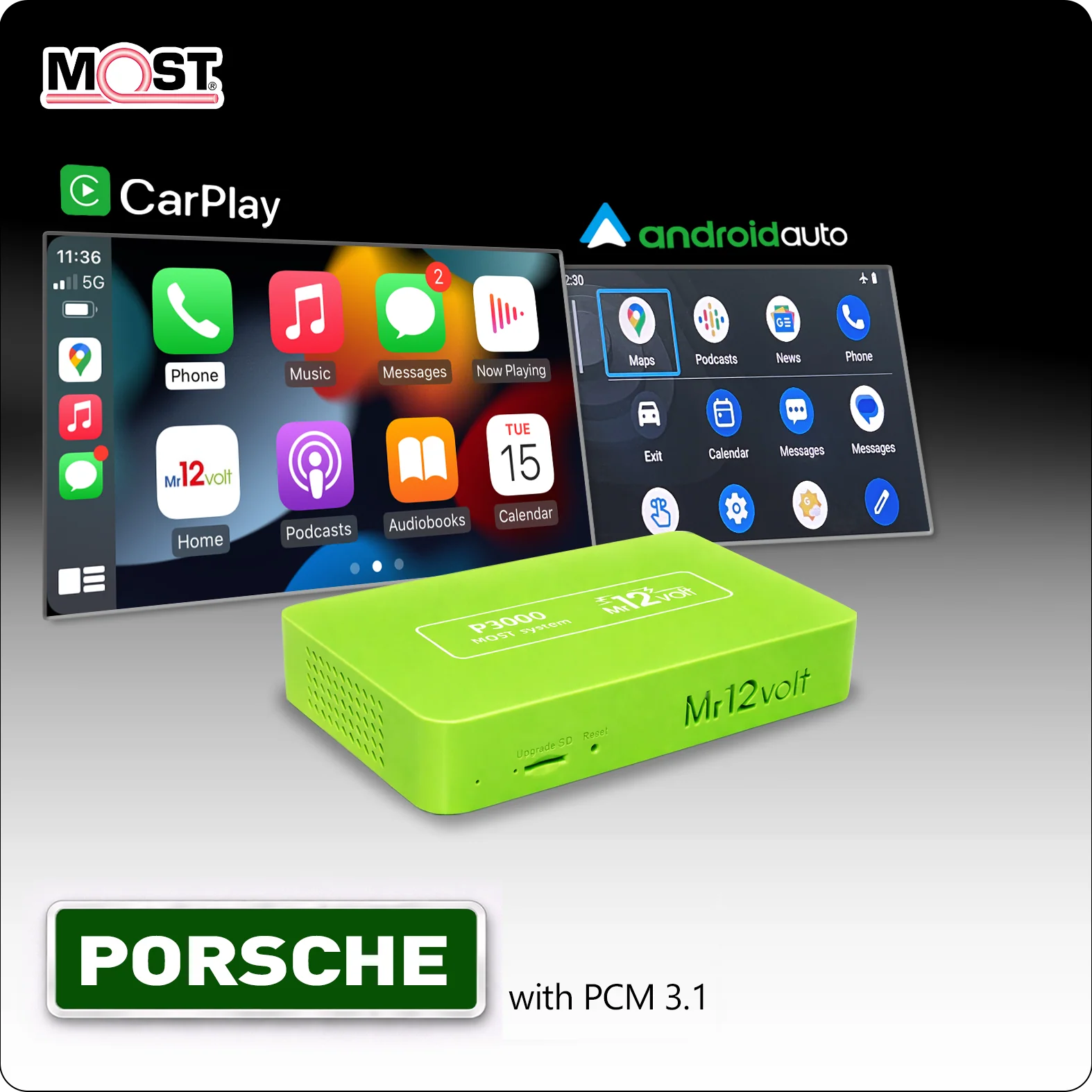

Mr12volt Porsche CarPlay Android Auto w/ DSP + MOST PCM 3.1 MM with integrated mic (NEW VERSION)


Mr12Volt P2000 MM series is a High Quality Apple Carplay and Android Auto Connectivity that simply works! Factory integration without replacement of your factory radio (PCM). No coding or dealer setup required. Skilled installation can be achieved on most models in under an hour.
Compatible with PCM 3.1 on the following Porsches:
911 2012-2016
Boxster / Cayman 2013-2016
Panamera / Cayenne 2010-2016
Macan 2015-2016


SKU: N/A Category:

Save with product bundles

Discounts will be applied in cart

For 3 items

MOST Bus CarPlay & Android Auto Interface

Model No: P2000-PCM31MM
The brand new Mr12Volt P2000 MM series has just gotten better now with OEM microphone support.

Compatible with PCM 3.1 on the following Porsches:

911                                          2012-2016
Boxster / Cayman              2013-2016
Panamera / Cayenne        2010-2016
Macan                                   2015-2016

Highlight Features:

  • OEM microphone support
  • Runs on MOST BUS with High-End sound quality
  • Wireless & Wired Apple CarPlay, Google Android Auto
  • Wireless MirrorLink
  • Bluetooth Hands free & Audio Streaming
  • USB Video & Music Playback
  • Reverse/Front/Left/Right camera Input
  • Supports Apple Lossless music streaming
  • Highly Customizable 15 bar DSP Equalizer

How it works

  • Mr12volt is selected through TV features of PCM
  • No coding or Factory TV module is needed, once Mr12volt CarPlay module is installed successfully, the “TV” icon will appear on the PCM home menu right away.
  • Supports aftermarket cameras up to AHD720

P2000 supported multimedia type (High performance video and audio codec)

  • Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
  • Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
  • Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium andhigh levels. ASP, levels 0-5) 30fps @1080p
  • Decoding Real-Video 8/9/10 30fps @1080p
  • Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
  • Decoding DivX (DivX3/4/5/6) 30fps @1080p
  • Decoding H.263 (Profile 0, levels 10-70.) 30fps @720×576
  • JPEG codec (Baseline interleaved) 8176×8176
  • Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
  • Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

Related Topics:

How to mirror to P2000 from phone

Additional Technical Data:

  • Operating Temperature: -20 – +80 degree centigrade
  • DAC resolution: 18Bit
  • MP3 kbit: 8 – 384kbit
  • Voltage: 10 – 14.6V DC
  • Operation Current: 450mA (700mA when charging mobile phone)
  • S/N ratio: 95dB
  • Total Harmonic Distortion: 0.1%
  • Frequency Response: 20Hz – 20KHz
